Put your name on the deliverable
Add company details and a logo. Pro includes white-label output and twelve Engineer report themes with colour and font controls.
Product tour
Every stage, from site survey to controlled deliverables.
Follow the real project sequence through evidence capture, calculation, plant sizing, schematics, quotation and reporting. Nothing plays until you press it.

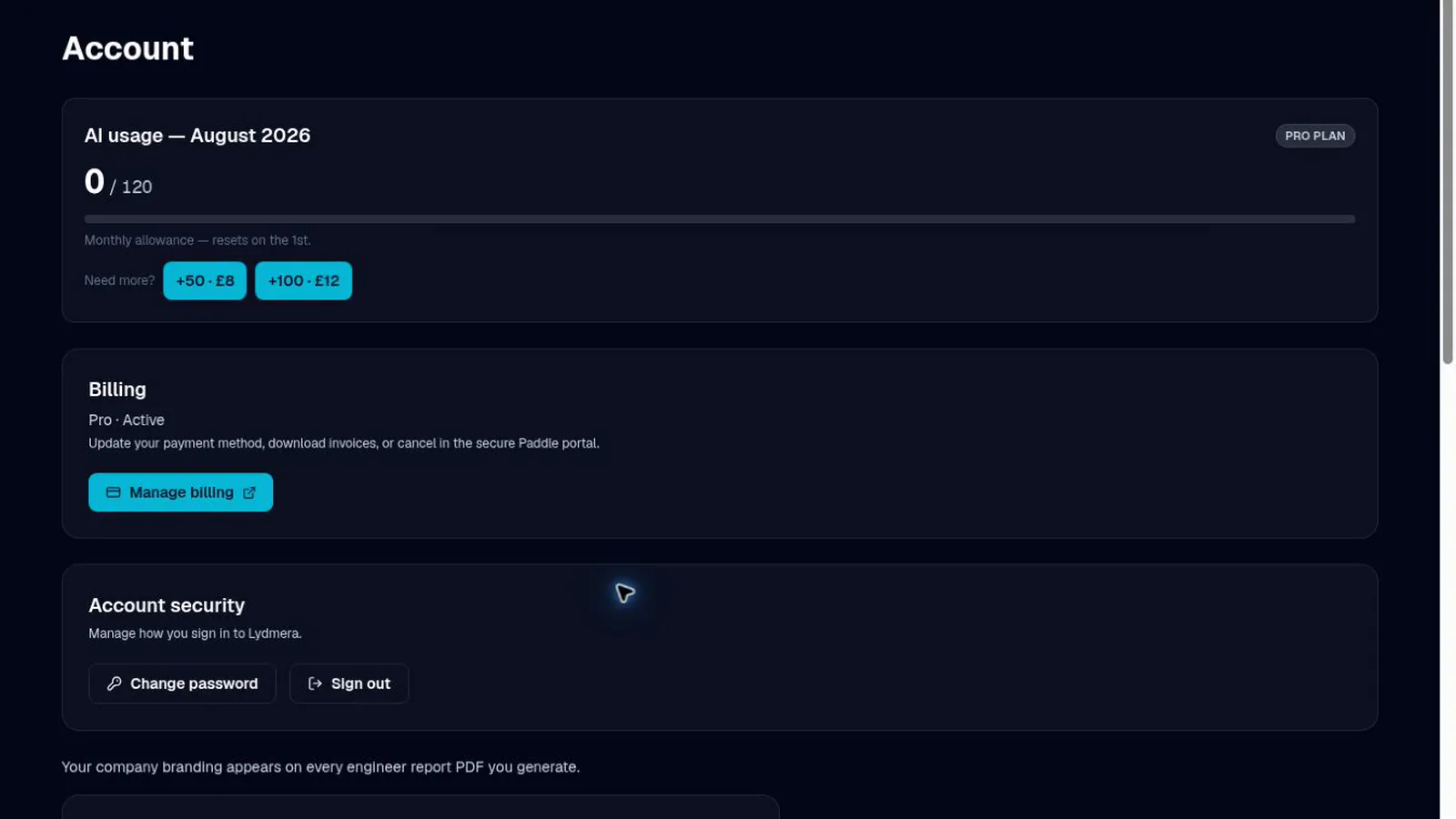

Set up
Set your company identity once, then choose the presentation of your Engineer reports.
Survey the site
Capture requirements, measurements, notes and evidence in a guided visit before any of it is allowed to become engineering input.
Walk the site in short, structured steps
Work through two or three questions at a time, add section notes and evidence, then submit a frozen record for engineering review and explicit application.
Capture inputs
Start from what the client actually sent you — a written brief, a PDF, a plan or a sketch — rather than retyping it into a form.

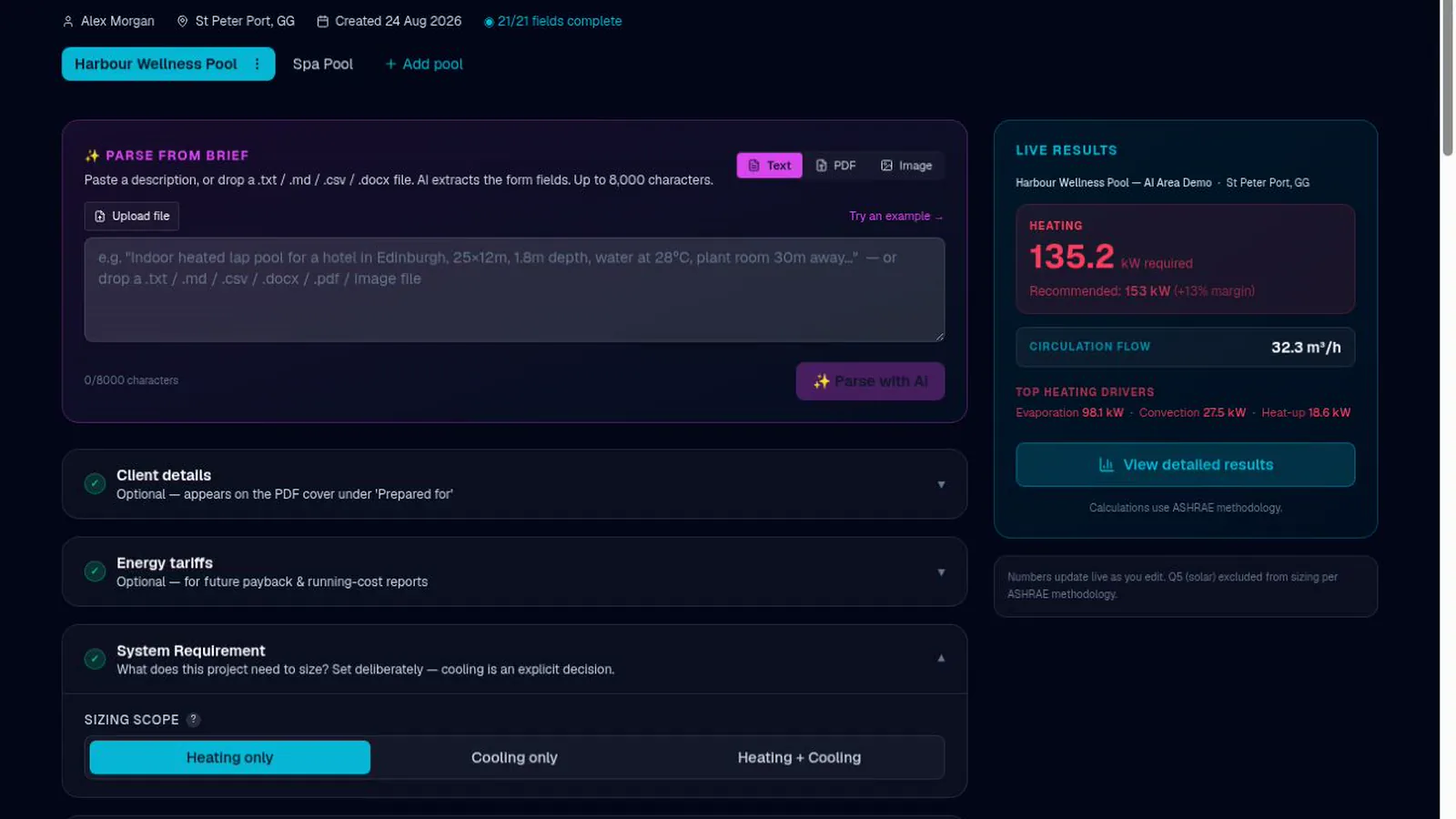

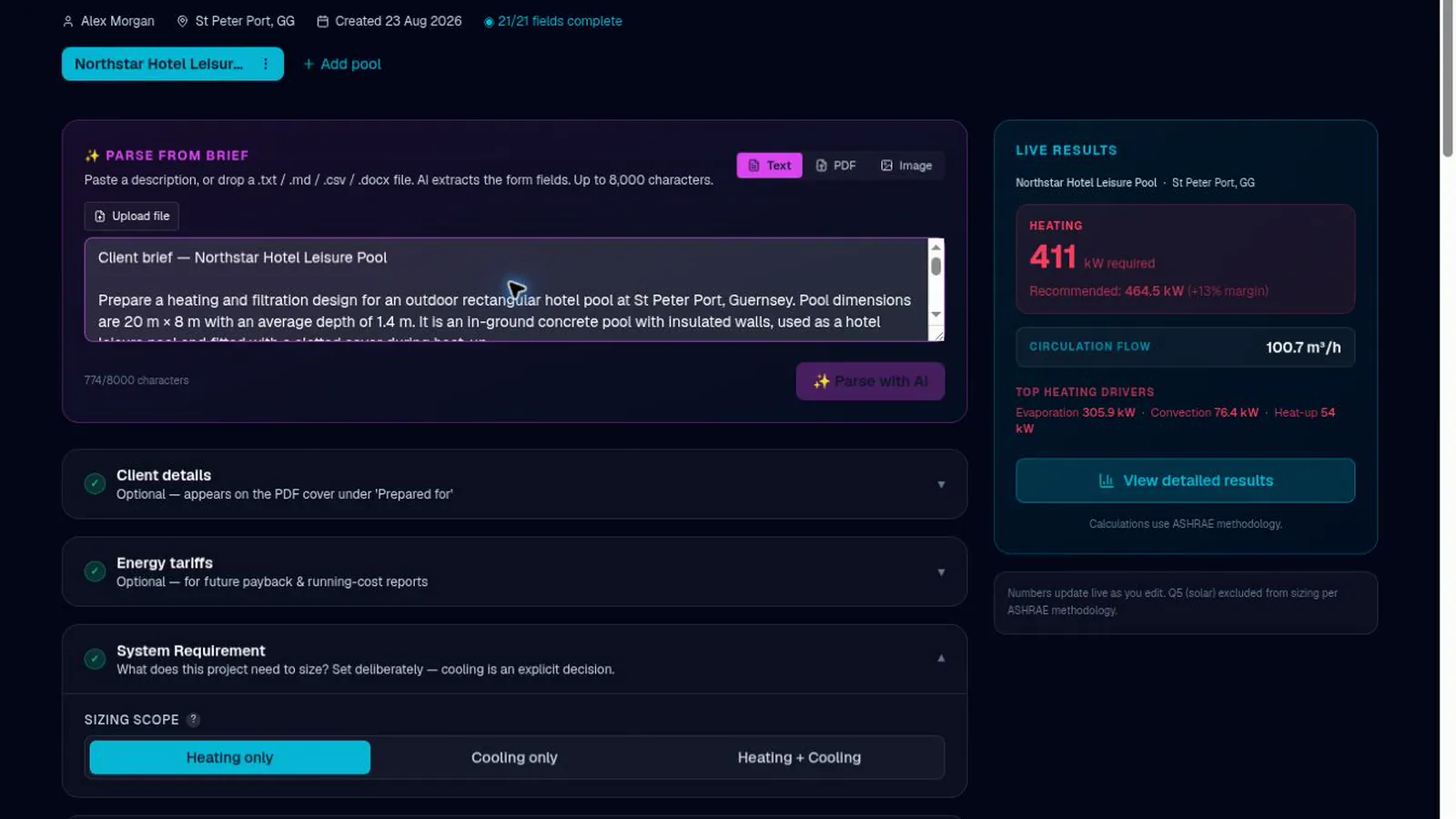

Review AI-extracted brief inputs
Paste or upload a brief, review extracted values and inferences, choose the target pools and apply only your selected inputs.

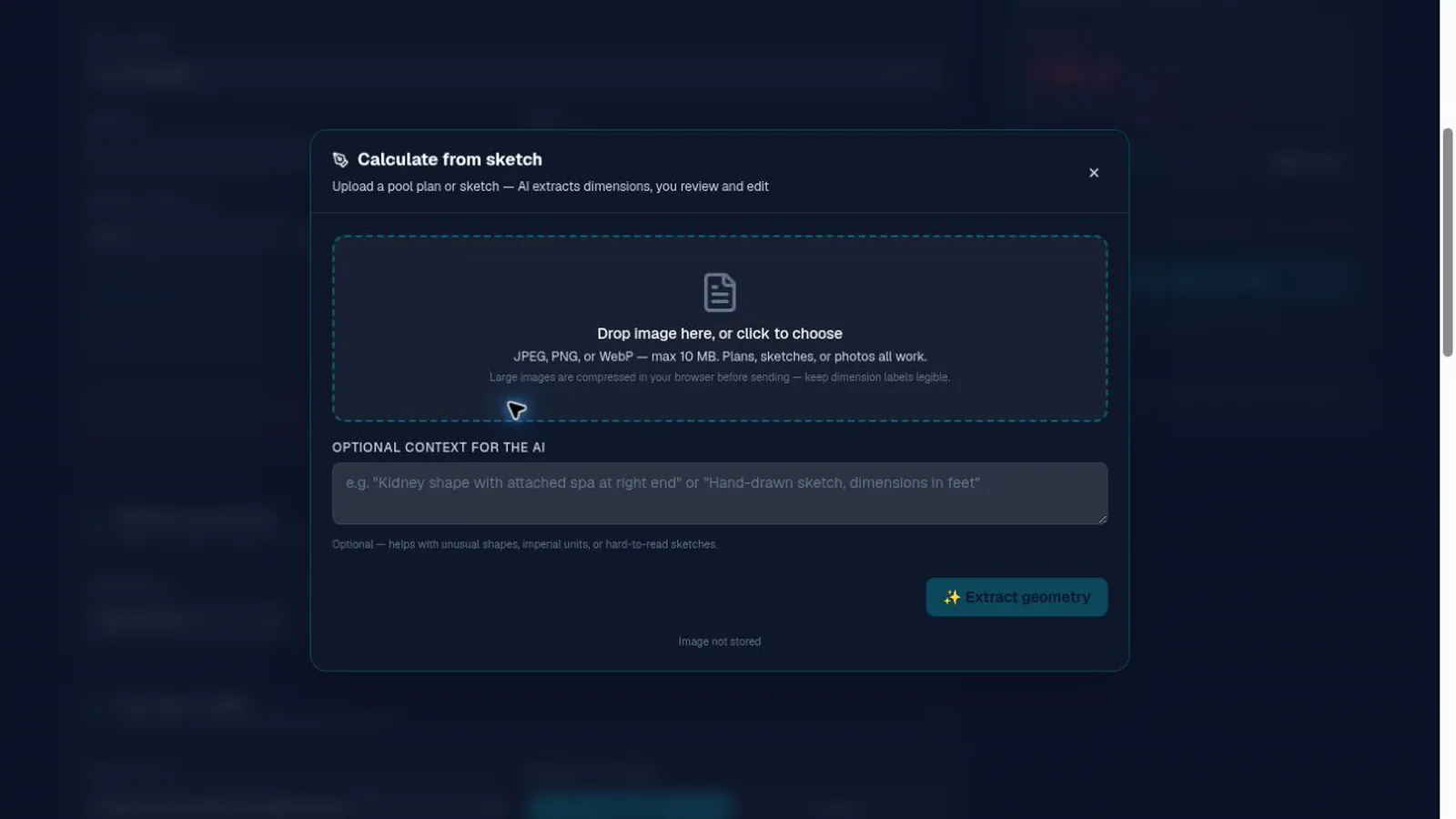

Review AI-extracted pool geometry
Upload a plan or a sketch and the geometry is read from it — dimensions, shape and surface area — with the result shown against the drawing you gave it.
Calculate
Use the project location and a selected hourly archive period to compare the weather cases that inform the load.

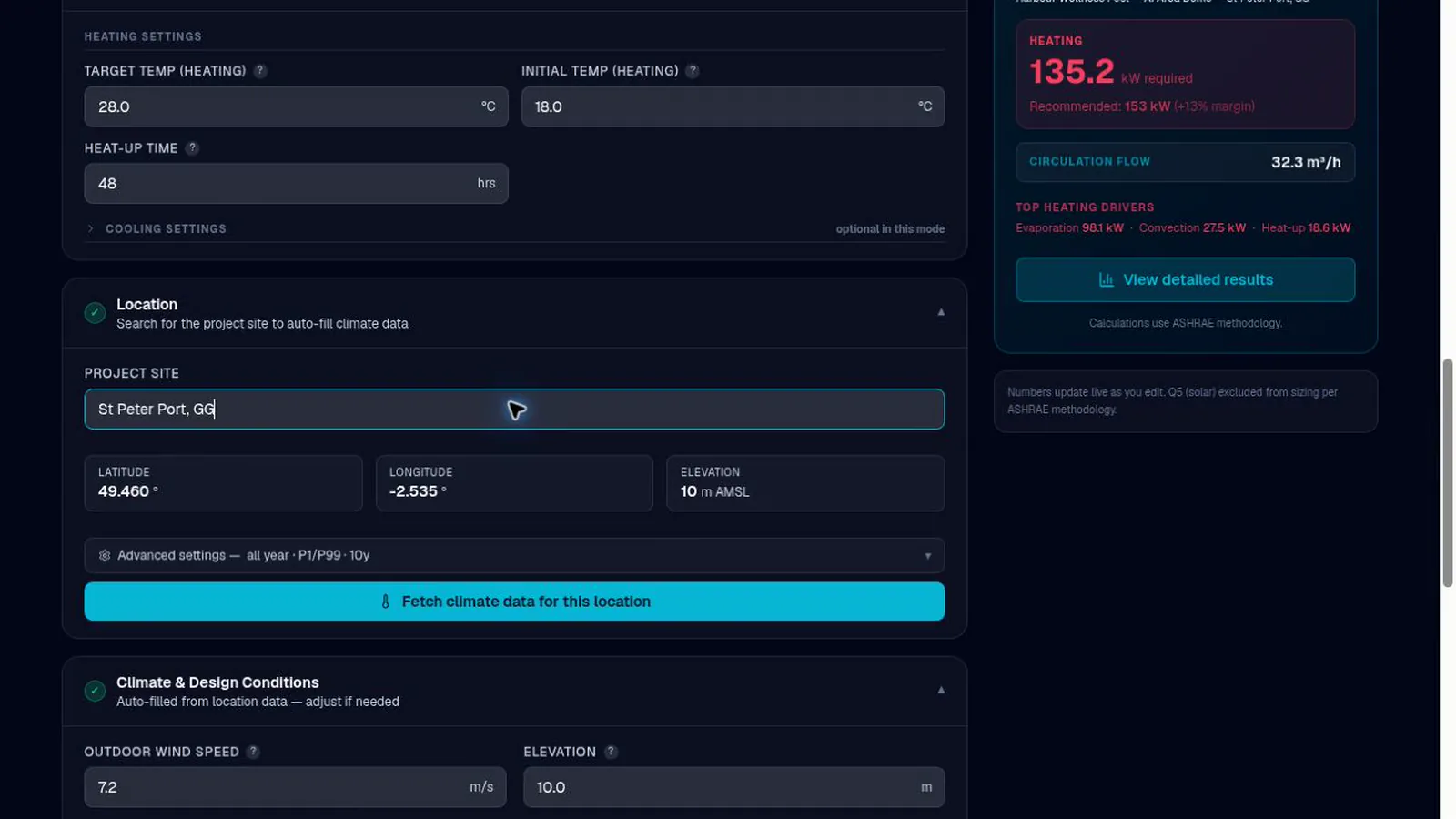

Compare archive-derived weather cases
Choose the archive period and percentile basis, compare temperature-led and wind-led cases, then review and confirm the inputs to apply.
Design plant
Size the plant that meets the load — heating, filtration and circulation — with filtration evaluated using versioned Lydmera screening assumptions whose scope is disclosed.
Plant and circulation

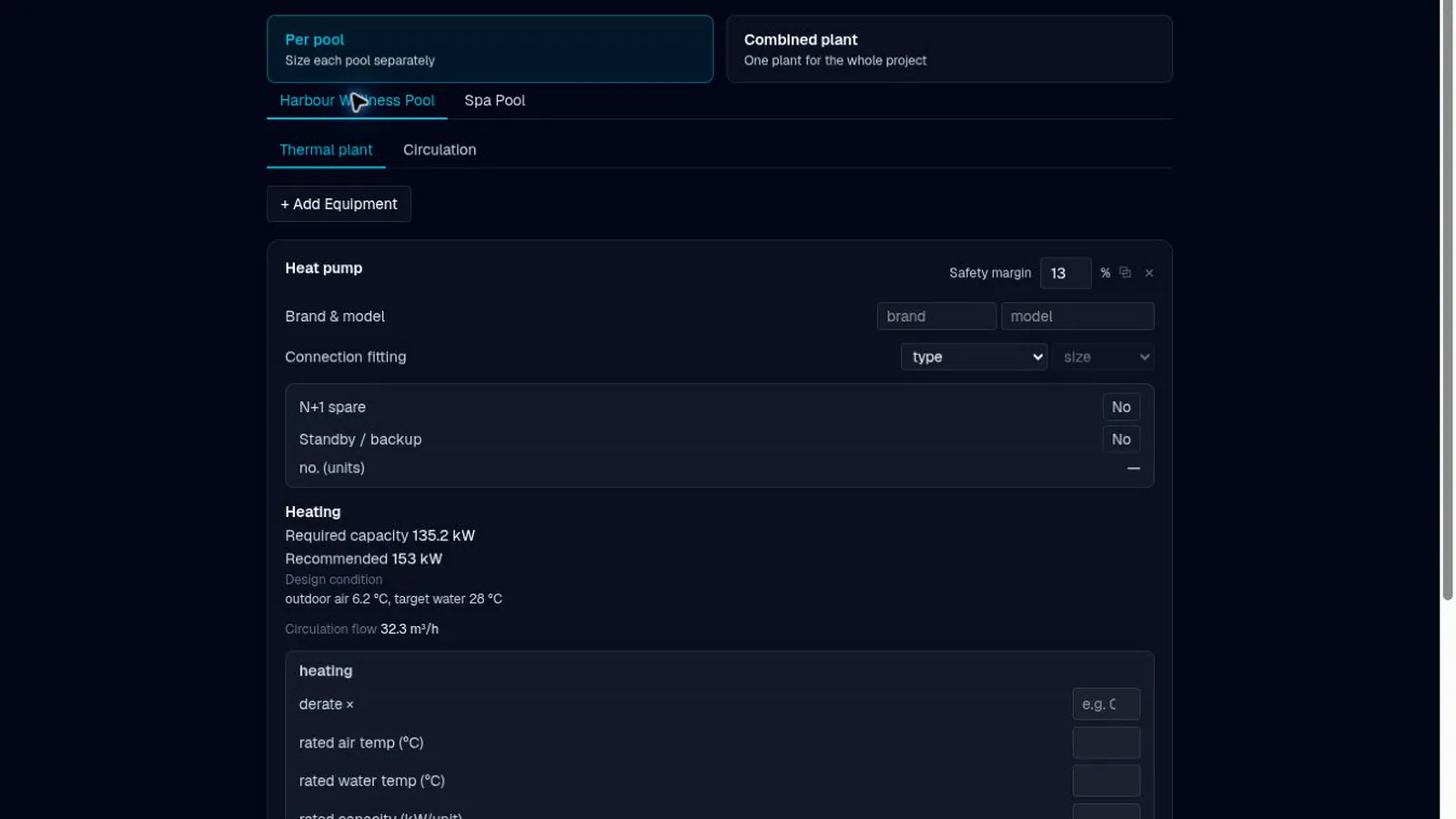

Per pool, or one plant for the project
Configure heating plant for each pool independently, or as a single combined plant serving several — on the same project, without rebuilding it.

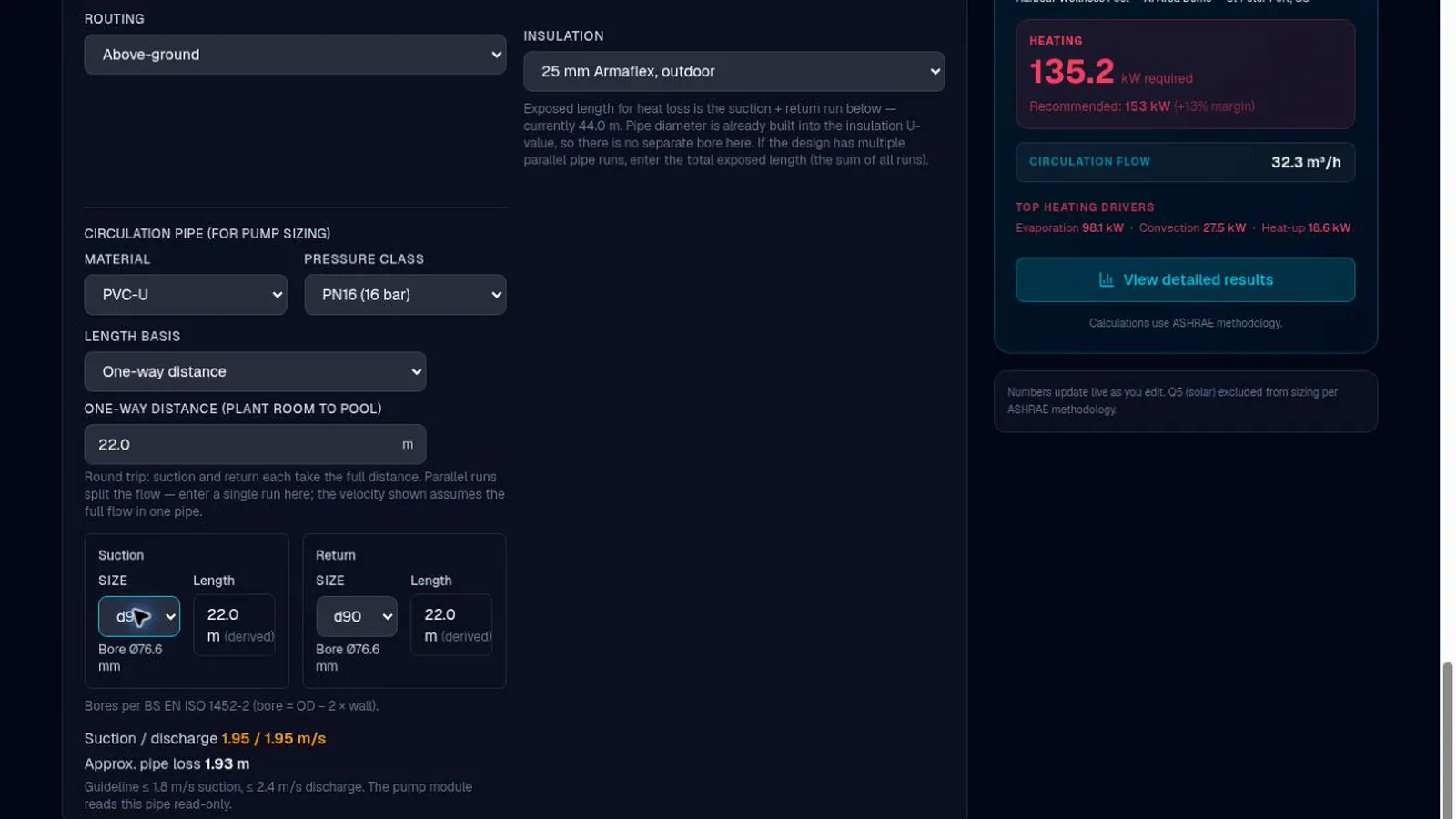

Pipework that passes its velocity check
Enter pipe runs and bores and see flow velocity and pressure loss as you go, checked against the limits rather than after the fact.
Equipment sizing

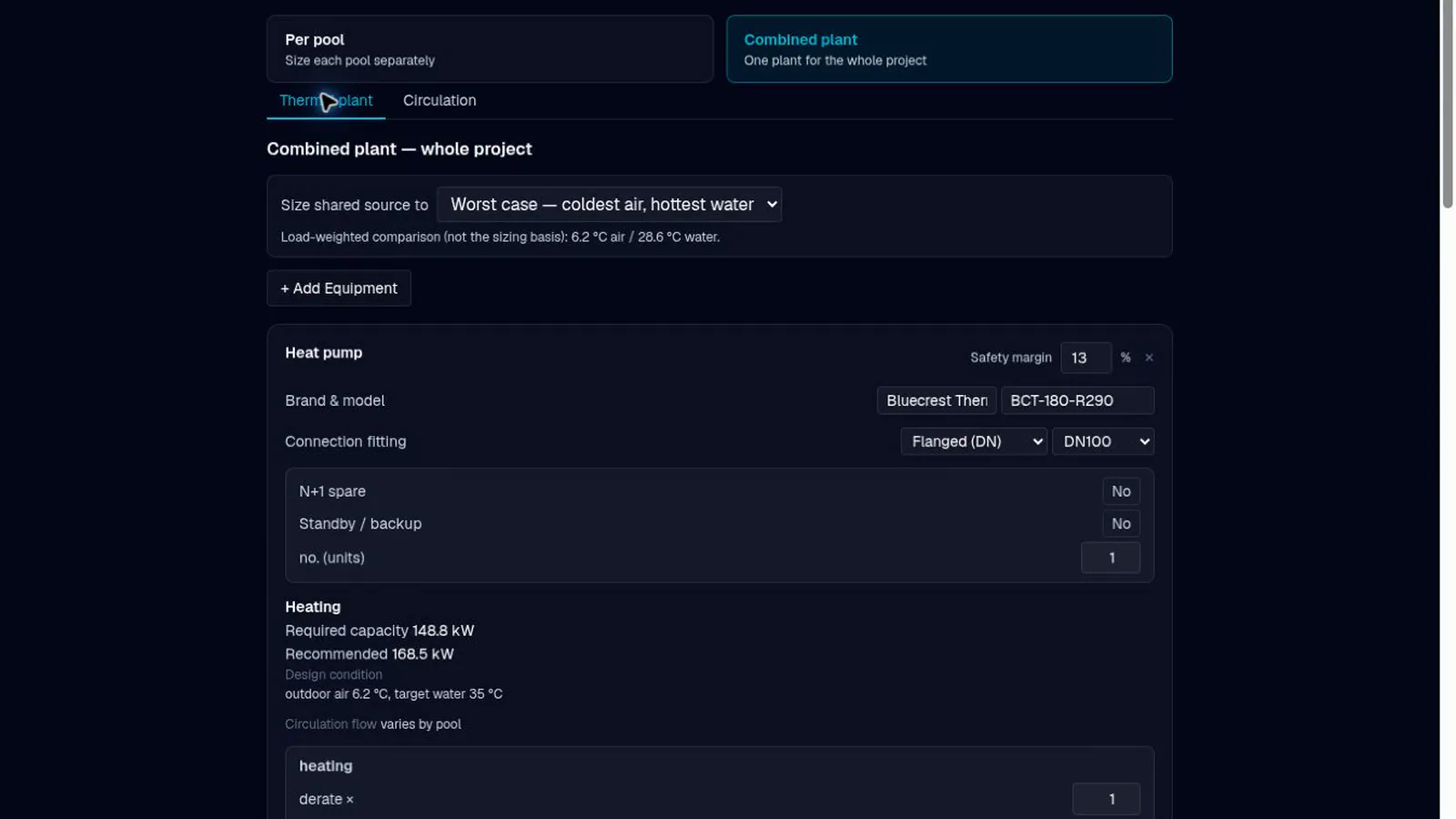

Review the selected heat-pump rating
Use AI to extract a published rating, check its air, water and humidity conditions against the source, then assess suitability for your project.

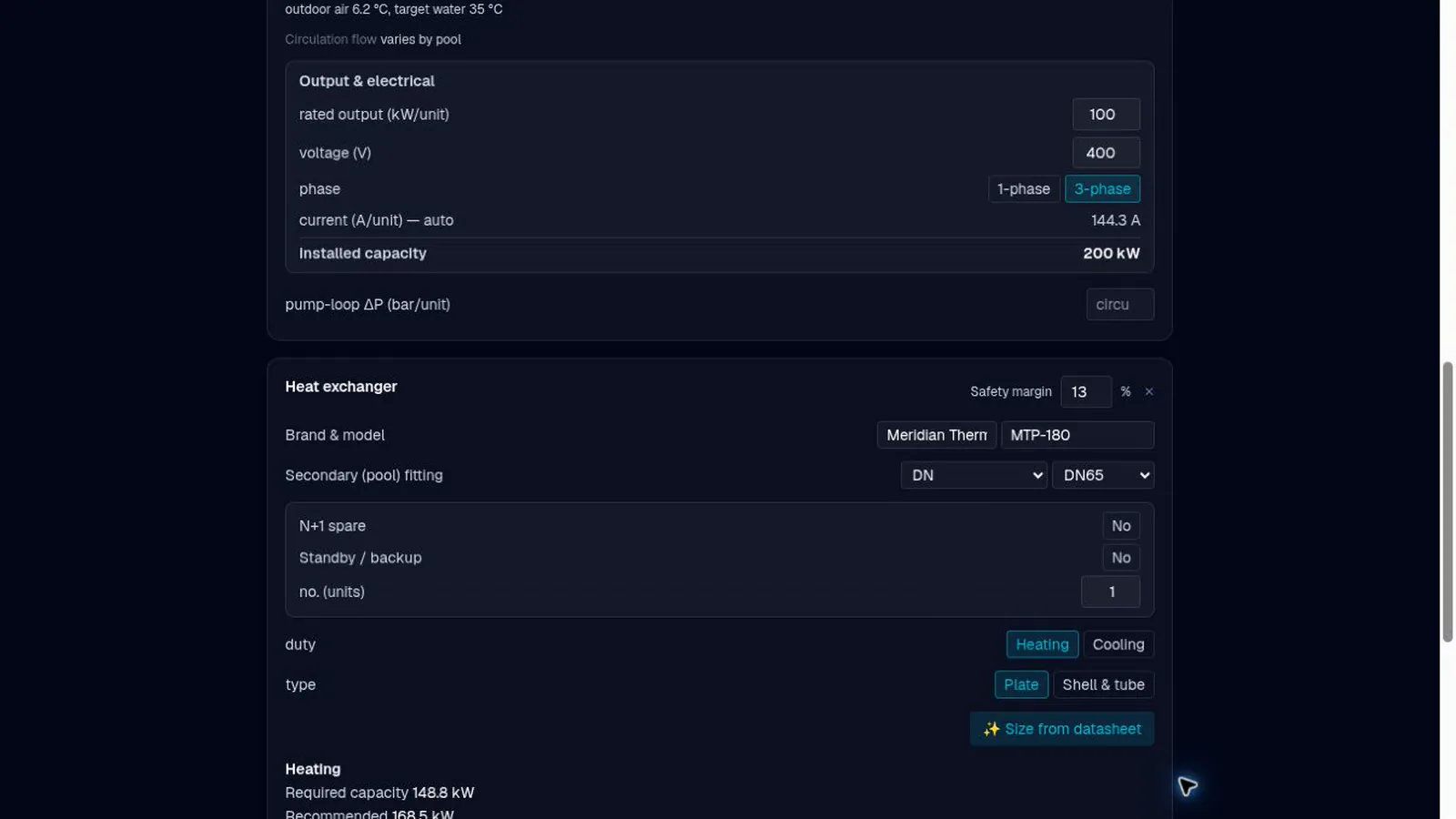

Review heat-exchanger duties and conditions
Review duty rows and source notes, correct saved values and check the primary and pool-side rating conditions before project use.

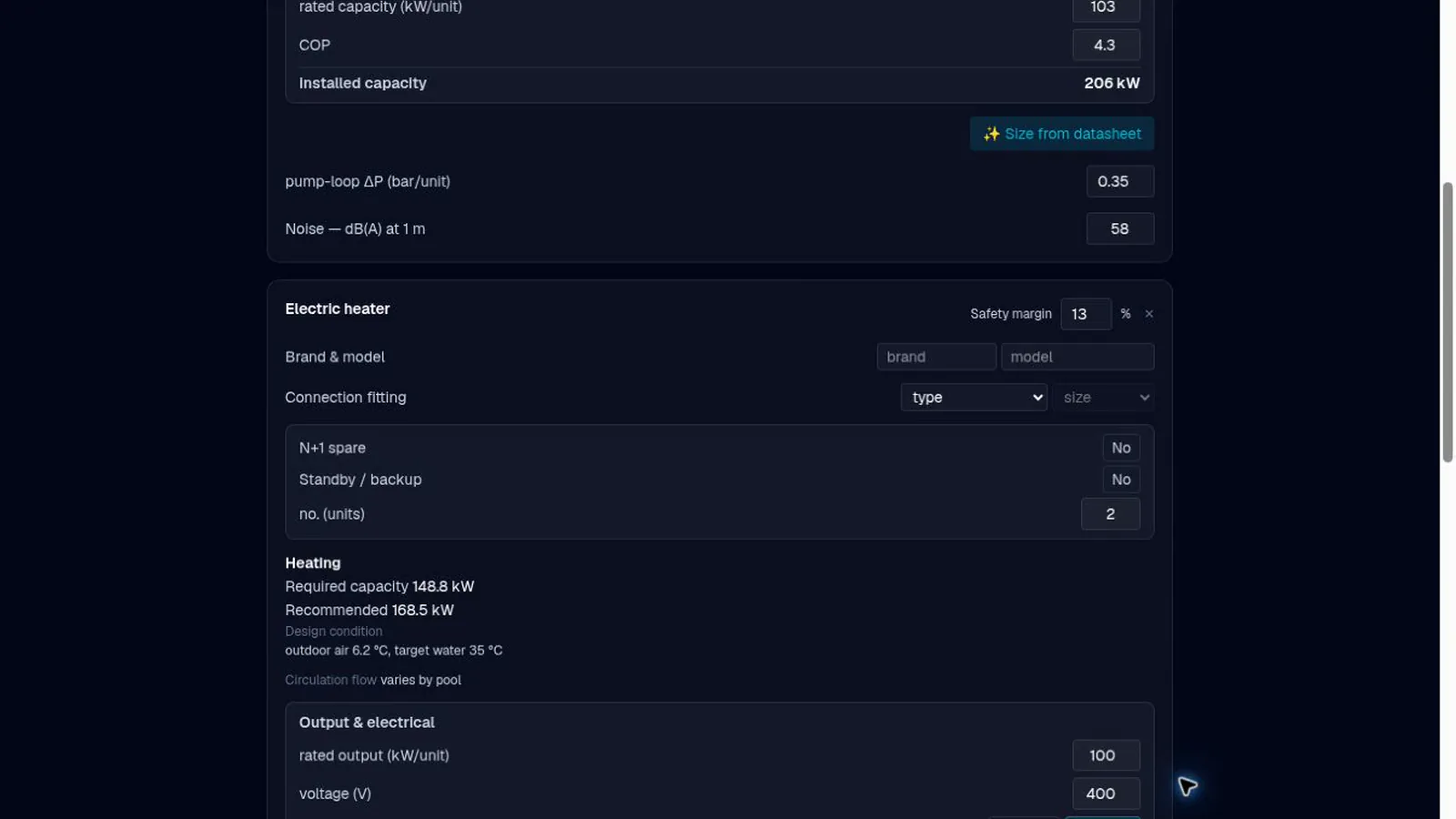

Configure electric heating
Set electric heating capacity and see installed duty against the required load, including the margin applied.

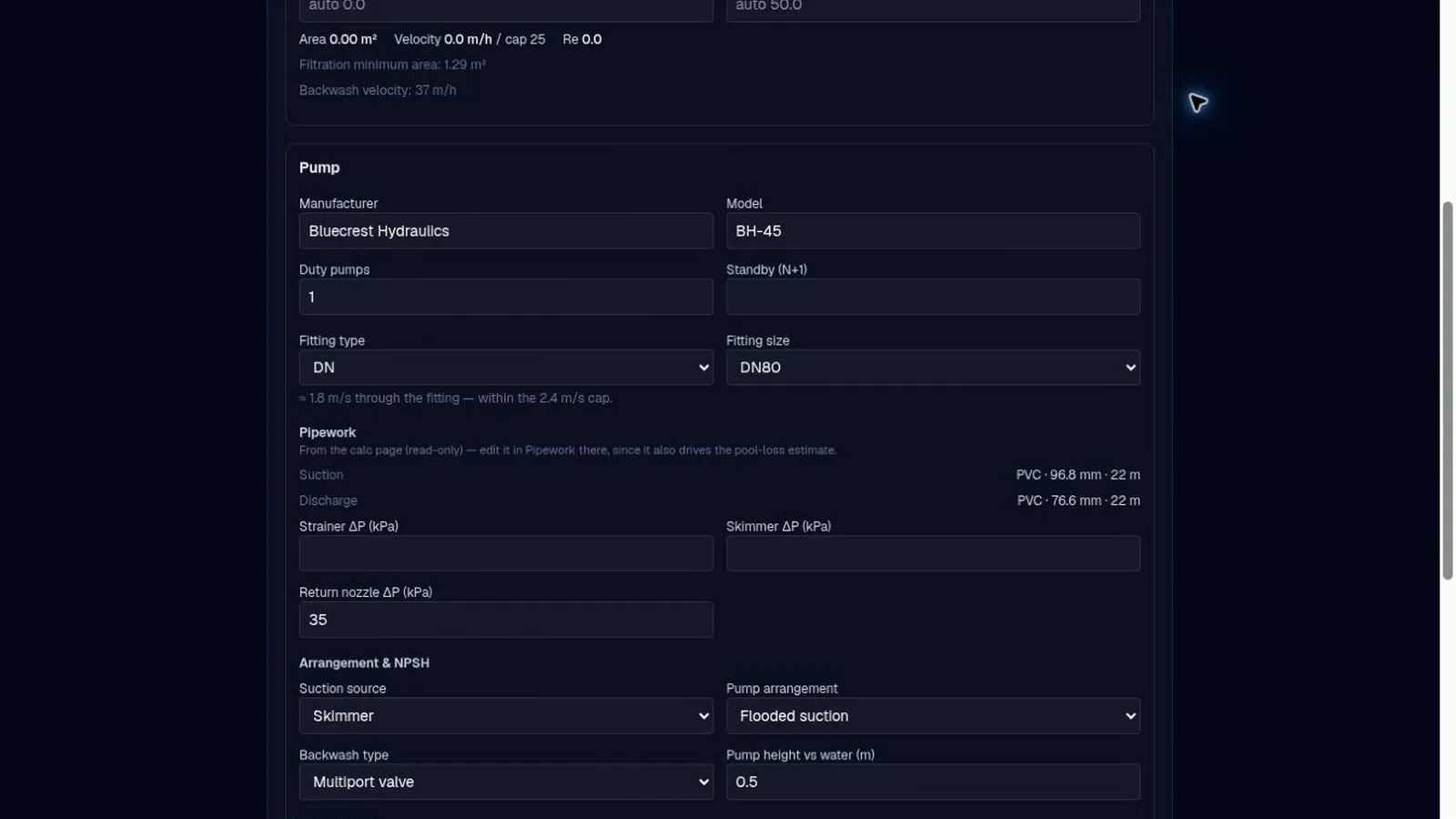

Review numeric pump performance data
Import published flow and head tables, review the saved points and check the duty range and required pump evidence before selecting equipment.

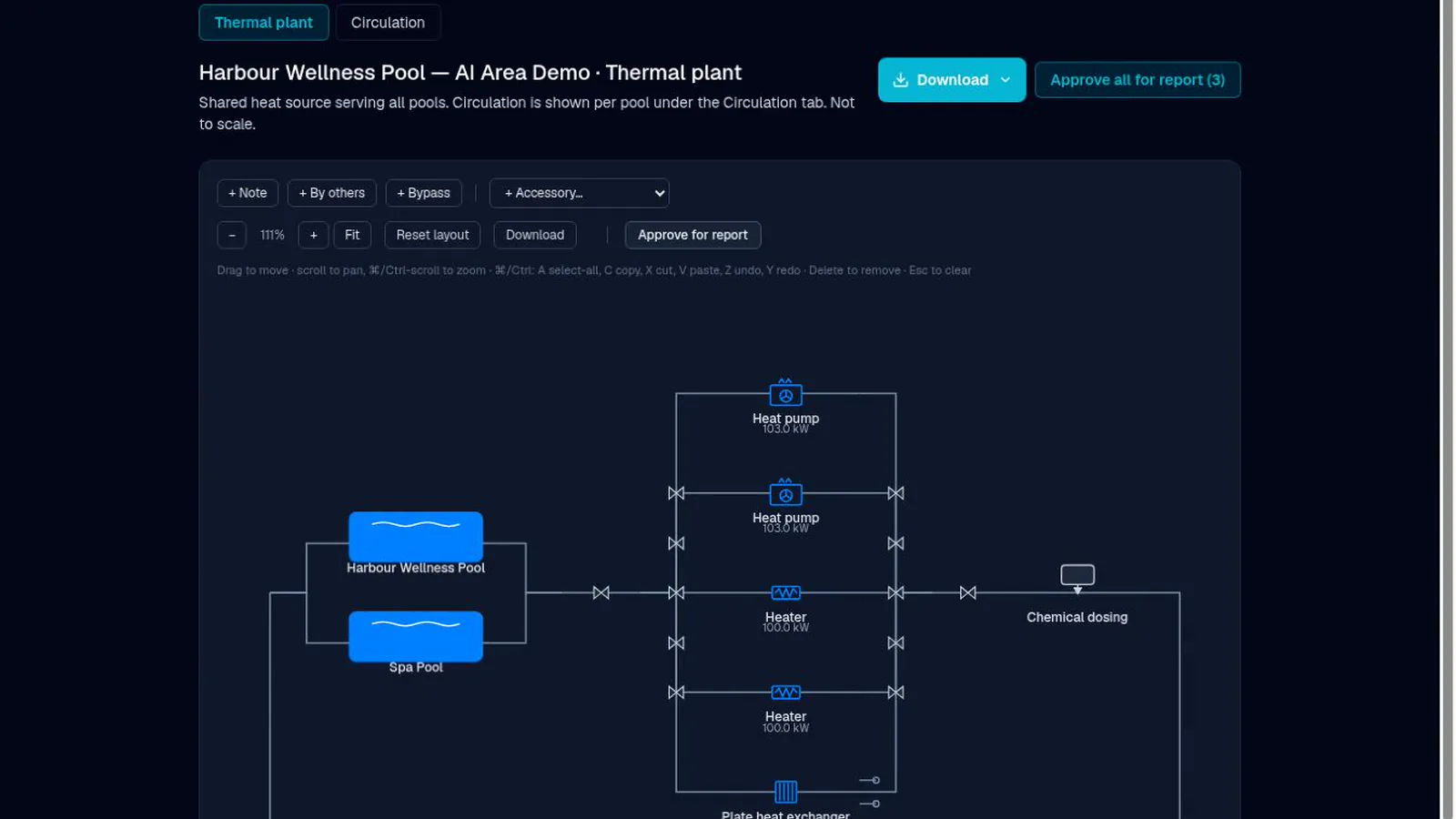

Control drawings
A schematic you arrange and approve, where what prints is what you signed — and stops being approved the moment it changes.

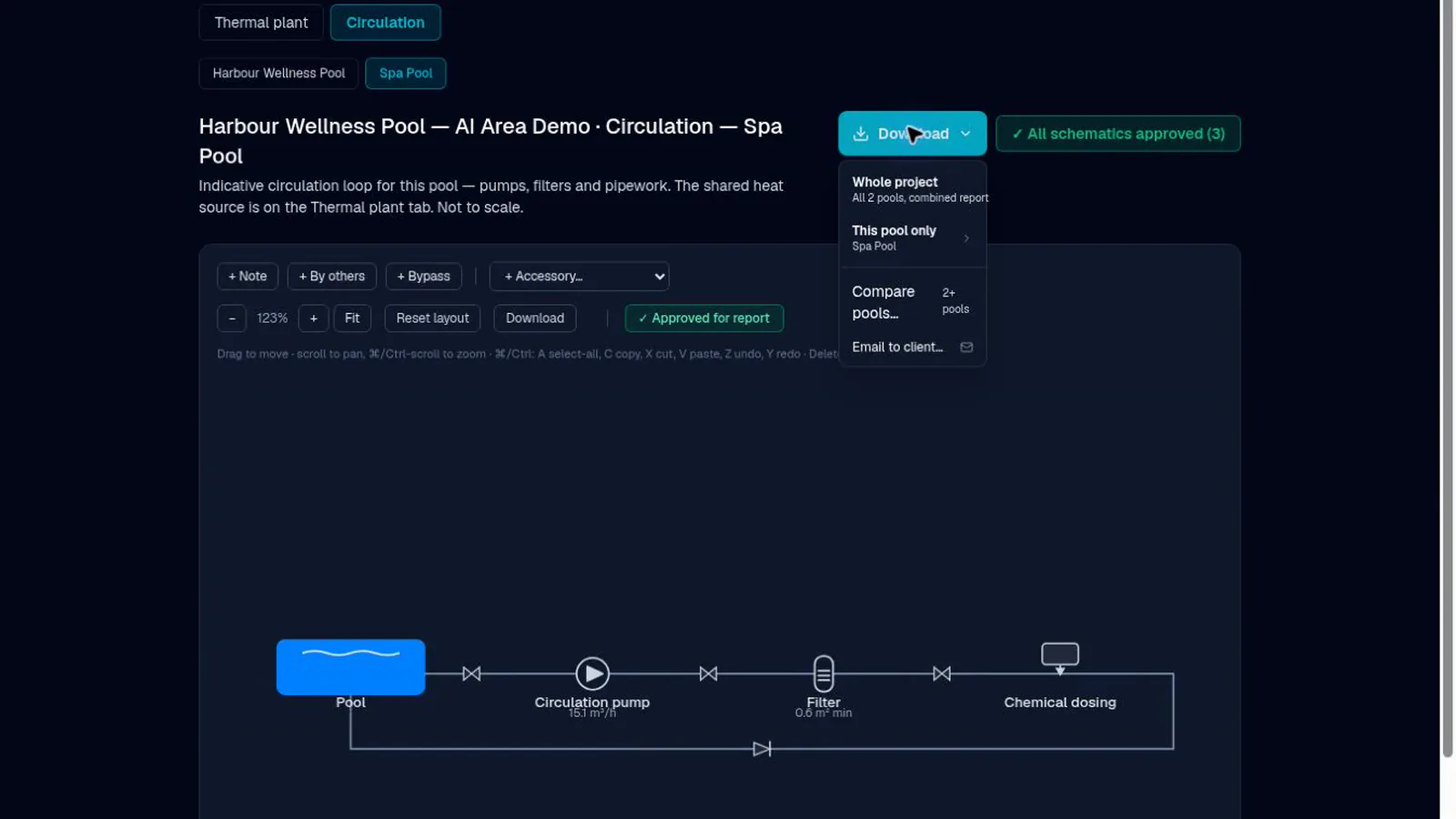

Draw it, approve it, issue it
Arrange the schematic, add notes and accessories, and approve it. Change the drawing afterwards and the approval lapses rather than printing quietly.
Prepare the quotation
Turn the selected design into a clear commercial document without merging it into the engineering report.
Price, preview and control each issue
Price selected equipment and manual materials, labour and services. Set commercial terms, review changes and freeze each issued PDF revision.
Deliver
Issue the work as a branded engineer report, with the same figures available as a spreadsheet and a data export.
Issue the report and the data behind it
Choose the Engineer report theme and sections, generate the branded PDF, then export the same project values as spreadsheet and CSV data.
Work your way
The same project, in the units and the presentation your client expects.
Metric or imperial, light or dark
Switch display and report units between metric and imperial, and choose light or dark application appearance. Engineer report themes have their own settings.
Pool-water thermal sizing, circulation screening and reviewed equipment selection, with clear project inputs and results.
MethodologyRun it on a project of your own.
Card required. Cancel before the trial ends to avoid being charged — Checkout and your account show the exact date and time.
